GKCF-2M-008A ディプレクサー（Diplexer）
| Channels | Passband 1 | Passband 2 |
|---|---|---|
| Frequency Range (MHz) | DC–1900 | 3000–6000 |
| Insertion Loss (dB) | ≤ 3.0 | ≤ 4.0 |
| Return Loss (dB) | ≥ 12.0 | ≥ 10.0 |
| Rejection (dB) | ≥ 60 @ 3000–6000 MHz | ≥ 60 @ DC–1900 MHz |
| PIM (dBc) | ≤ -150 @ 2×+43 dBm (1432–1517 MHz @ 5 MHz Spacing) | |
| Impedance (Ω) | 50 | |
| Power Rating (W) | 100 Avg / 1000 Peak | |
| Environmental Specifications | |
|---|---|
| Temperature Range (℃) | 0 ~ +50 |
| Environmental Rating | Indoor |
| Mechanical Specifications | |
|---|---|
| Connections | N-F |
| Size (mm) | 150 × 114.5 × 32 (TBD) |
| Mounting Options | Holes |
| Colour | Metal |
GKCF-1M-034A 高域通過フィルタ（High Pass Filter）
| Electrical Characteristics | |
|---|---|
| Passband (MHz) | 3000–5000 |
| Insertion Loss (dB) | ≤ 2.0 |
| Passband VSWR | ≤ 2.0 |
| Rejection (dB) | ≥ 55 @ 1805–1880 MHz & 2110–2200 MHz & 2620–2690 MHz |
| PIM (dBc) | ≤ -150 @ 2×+43 dBm (Passband) |
| Impedance (Ω) | 50 |
| Power Handling (W) | 80W CW / 700W Peak (< 1μs) |
| Environmental Characteristics | |
|---|---|
| Operating Temperature Range (℃) | +15 ~ +40 |
| Environmental Class | Indoor |
| Mechanical Characteristics | |
|---|---|
| Connectors Type | N-Female |
| Colour | In Original Color |
GKWI-15000M-001A ウェーブガイド・アイソレータ（Wave-guide Isolator）
- 🔻 Low Insertion Loss
- 📡 Broadband Transmission
| Frequency | 15–16 GHz |
| Temperature Range | -35℃ ~ +80℃ |
| Return Loss | ≥ 20.0 dB |
| Isolation | ≥ 20.0 dB |
| Insertion Loss | ≤ 0.25 dB |
| Power Handling (F/R) | 2W CW |
| IMD3 | 45 dBc @ 2×30 dBm |
GKDC-4000M-002A ドロップイン・サーキュレータ
- ⚡ High Power Handling
- 💰 Economically Priced
- 🧭 Miniaturization
| Frequency (MHz) | 4400–5000 | |
| Operating Temperature Range | +20℃ ~ +30℃ | -30℃ ~ +85℃ |
| VSWR | ≤ 1.25 | ≤ 1.3 |
| Isolation (dB) | ≥ 20 | ≥ 18 |
| Insertion Loss (dB) | ≤ 0.30 | ≤ 0.35 |
| Power Handling | 150W CW / 500W Peak | |
| Input / Output Impedance | 50 Ohm | |
| Direction | Clockwise Rotation | |
| Plating | Body: Silver-plating; Tab: Silver-plating | |
| Storage Temperature Range | -55℃ ~ +125℃ | |
GKSC-3000M-006A SMTサーキュレータ（Surface Mount Circulator）
- 📦 Surface Mounting
- 💰 Economically Priced
- 🧭 Miniaturization
| Operating Frequency Range | 3300–3600 MHz |
| Operating Temperature Range | +15℃ ~ +35℃ / -40℃ ~ +110℃ |
| Return Loss | ≥ 22.0 dB / ≥ 20.0 dB |
| Isolation | ≥ 22.0 dB / ≥ 20.0 dB |
| Insertion Loss | ≤ 0.25 dB / ≤ 0.30 dB |
| IMD3 | ≤ -60 dBc @ 2×36 dBm (Any 5 MHz Spacing) |
| Harmonics (2xf0) | ≤ -50 dBc (+40 dBm CW @ 3450 MHz) |
| Power Handling (Forward) | 10W CW / 60W PK |
| Direction | Clockwise Rotation |
| Input / Output Impedance | 50 Ohm |
| Storage Temperature Range | -50℃ ~ +150℃ |
| Reflow Profile | 260℃ Max for 10 seconds max |
GKSC-3000M-003A SMTサーキュレータ（Surface Mount Circulator）
- 🔩 Surface Mounting
- 💲 Economically Priced
- 🧭 Miniaturization
| Operating Frequency Range | 3400–3600 MHz |
| Operating Temperature Range | +15℃ ~ +35℃ / -40℃ ~ +125℃ |
| Return Loss | ≥ 23.0 dB / ≥ 21.0 dB |
| Isolation | ≥ 23.0 dB / ≥ 21.0 dB |
| Insertion Loss | ≤ 0.20 dB / ≤ 0.25 dB |
| IMD3 | ≤ -65 dBc @ 2×37 dBm (Any 5 MHz Spacing) |
| Power Handling (Forward) | 20W CW / 200W PK |
| Direction | Clockwise |
| Input / Output Impedance | 50 Ohm |
| Storage Temperature Range | -55℃ ~ +155℃ |
| Reflow Profile | 280℃ Max for 10 seconds max |
GKDC-2000M-046A ドロップイン・サーキュレータ（Circulator）
- 🚫 High Isolation
- 🔻 Low Insertion Loss
- 📉 Low IMD
- 🌡 Good Temperature Stability
| Operating Frequency | 2496–2690 MHz |
| Operating Temperature | +20℃ ~ +30℃ / -40℃ ~ +105℃ |
| Return Loss (P1→P2) | ≥ 25.0 dB / ≥ 23.0 dB (≥ 15.0 dB @ 2296–2690 MHz) |
| Isolation (P2→P1) | ≥ 28.0 dB / ≥ 25.0 dB (≥ 15.0 dB @ 2296–2890 MHz) |
| Insertion Loss (P1→P2) | ≤ 0.15 dB / ≤ 0.20 dB |
| Power Handling | 300W CW / 1500W Peak |
| IMD3 | ≤ -75 dBc @ 2×46.0 dBm CW |
| Impedance | 50 Ohm typical |
| Transmission Direction | Clockwise Rotation |
| Plating | Body: Silver-plating; Tab: Silver-plating |
GKDI-3000M-007A ISO-CIRCULATOR
- 📡 Broadband Transmission
- 🔻 Low IMD
| Operating Frequency Range | 3300–3800 MHz |
| Operating Temperature Range | -40℃ ~ +85℃ |
| Return Loss (P1, P2, P3) | ≥ 20.0 dB |
| Isolation (P2→P1) | ≥ 40.0 dB |
| Isolation (P3→P1) | ≥ 18.0 dB |
| Insertion Loss (P1→P2) | ≤ 0.45 dB |
| Insertion Loss (P2→P3) | ≤ 0.25 dB |
| Power Handling (Forward) | 50W CW / 500W PK |
| Leakage Reverse Power Handling | 20W CW |
| IMD3 (P1→P2) | ≤ -70 dBc @ 2×46 dBm (Any 5 MHz Spacing) |
| Direction | Clockwise |
| Input / Output Impedance | 50 Ohm |
| Moisture Proof | Humidity 90% to 95% for 96 ± 2 hours @ +40 ± 3℃ |
| Storage Temperature Range | -40℃ ~ +110℃ |
GKDI-2000M-048A ドロップイン・アイソレータ
- 📶 Broadband Transmission
- 🔻 Low Insertion Loss
- 🌡 Good Temperature Stability
| Frequency | 2100–2200 MHz | |
| Temperature range | +20℃ ~ +30℃ | -40℃ ~ +90℃ |
| Return loss (P1→P2) | ≥ 27.0 dB | ≥ 25.0 dB |
| Isolation (P2→P1) | ≥ 28.0 dB | ≥ 25.0 dB |
| Insertion loss (P1→P2) | ≤ 0.15 dB | ≤ 0.20 dB |
| Forward Power Handling | 100W CW / 500W Peak | |
| Reverse Power Handling | 35W CW (Unlimited time), 70W CW (1 Minute) | |
| IMD3 | ≤ -78 dBc @ 2×43.0 dBm (4 MHz Spacing) | |
| Impedance | 50 Ohm typical | |
| Harmonics (2xf0) | ≤ -48 dBc @ 50W CW | |
| Transmission Direction | Counter-Clockwise Rotation | |
| Plating | Body: Silver-plating; Tab: Silver-plating | |
| Storage Temperature Range | -50℃ ~ +110℃ | |
GKDI-1900M-031A ドロップイン・アイソレータ
- 🌟 Low IMD
- 🌟 High Isolation
- 🌟 Miniaturization
- 🌟 Good Temperature Stability
| Frequency | 1930–1995 MHz | |
| Temperature range | +20℃ ~ +30℃ | -40℃ ~ +90℃ |
| Return loss (P1→P2) | ≥ 23.0 dB | ≥ 20.0 dB |
| Isolation (P2→P1) | ≥ 25.0 dB | ≥ 20.0 dB |
| Insertion loss (P1→P2) | ≤ 0.20 dB | ≤ 0.25 dB |
| Forward Power Handling | 40W CW / 200W Peak | |
| Reverse Power Handling | 5W CW (Unlimited time) | |
| IMD3 | ≤ -77 dBc @ 2×34 dBm (4 MHz Spacing) | |
| Harmonics (2xf0) | ≤ -39 dBc (+37 dBm CW @1960 MHz) | |
| Impedance | 50 Ohm typical | |
| Transmission Direction | Clockwise Rotation | |
| Plating | Body: Silver-plating; Tab: Silver-plating | |
GKDI-700M-030A ドロップイン・アイソレータ
- 🌟 Low IMD
- 🌟 Low Insertion Loss
- 🌟 High Isolation
- 🌟 Good Temperature Stability
| Frequency | 715–770 MHz | |
| Temperature range | +20℃ ~ +30℃ | -40℃ ~ +90℃ |
| Return loss (P1→P2) | ≥ 27.0 dB | ≥ 25.0 dB |
| Isolation (P2→P1) | ≥ 27.0 dB | ≥ 25.0 dB |
| Insertion loss (P1→P2) | ≤ 0.17 dB | ≤ 0.22 dB |
| Forward Power Handling | 150W CW / 720W Peak | |
| Reverse Power Handling | 100W CW (5 Minutes @ 100℃) | |
| IMD3 | ≤ -70 dBc @ 2×48 dBm (4 MHz Spacing) | |
| Harmonics (2xf0) | ≤ -47 dBc @ 100W CW | |
| Impedance | 50 Ohm typical | |
| Transmission Direction | Clockwise Rotation | |
| Plating | Body: Silver-plating; Tab: Silver-plating | |
GKDI-600M-010A ドロップイン・アイソレータ
- ⭐ High Isolation
- ⭐ Broadband Transmission
- ⭐ Low IMD
| Frequency | 617–652 MHz & 746–757 MHz | |
| Temperature range | +20℃ ~ +30℃ | -40℃ ~ +90℃ |
| Return loss (P1→P2) | ≥ 25.0 dB | ≥ 22.0 dB |
| Isolation (P2→P1) | ≥ 25.0 dB | ≥ 22.0 dB |
| Insertion loss (P1→P2) | ≤ 0.20 dB | ≤ 0.25 dB |
| Forward Power Handling | 250W CW / 1500W Peak | 125W CW (1 Minute) |
| Reverse Power Handling | 60W CW unlimited @ 100℃ (Base Plate) | |
| IMD3 | ≤ -76 dBc @ 2×43.0 dBm (4 MHz Spacing) | |
| Harmonics (2xf0) | ≤ -47 dBc @ 100W CW | |
| Impedance | 50 Ohm typical | |
| Transmission Direction | Clockwise Rotation | |
| Plating | Body: Silver-plating; Tab: Silver-plating | |

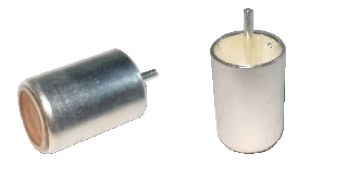

GKNF-3M-012
- 最高的冲压焊接工艺（最高のプレス溶接技術）
- 良好的外观及可靠性（優れた外観と信頼性）
- 严格而稳定的尺寸公差（厳格で安定した寸法公差）
- 优良可靠的性能（優れた信頼性）
| 工作频率范围 | DC–3000 MHz |
| 工作温度范围 | -40℃～+85℃ |
| 驻波比（VSWR） | ≦1.6 |
| 绝缘电阻 | ≧1000MΩ |
| 额定电压 | 500V |
| 耐压 | 1500V |
| 特性阻抗 | 50 欧姆（Ohm） |
| 存储温度范围 | -55℃～+125℃ |

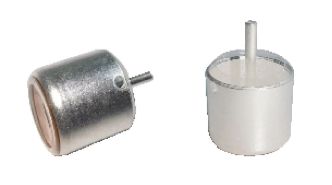

GKNF-3M-010
- 最高的冲压焊接工艺（最高のプレス溶接技術）
- 良好的外观及可靠性（優れた外観と信頼性）
- 严格而稳定的尺寸公差（厳格で安定した寸法公差）
- 优良可靠的性能（優れた信頼性）
| 工作频率范围 | DC–3000 MHz |
| 工作温度范围 | -40℃～+85℃ |
| 驻波比（VSWR） | ≦1.6 |
| 绝缘电阻 | ≧1000MΩ |
| 额定电压 | 500V |
| 耐压 | 1500V |
| 特性阻抗 | 50 欧姆（Ohm） |
| 存储温度范围 | -55℃～+125℃ |
